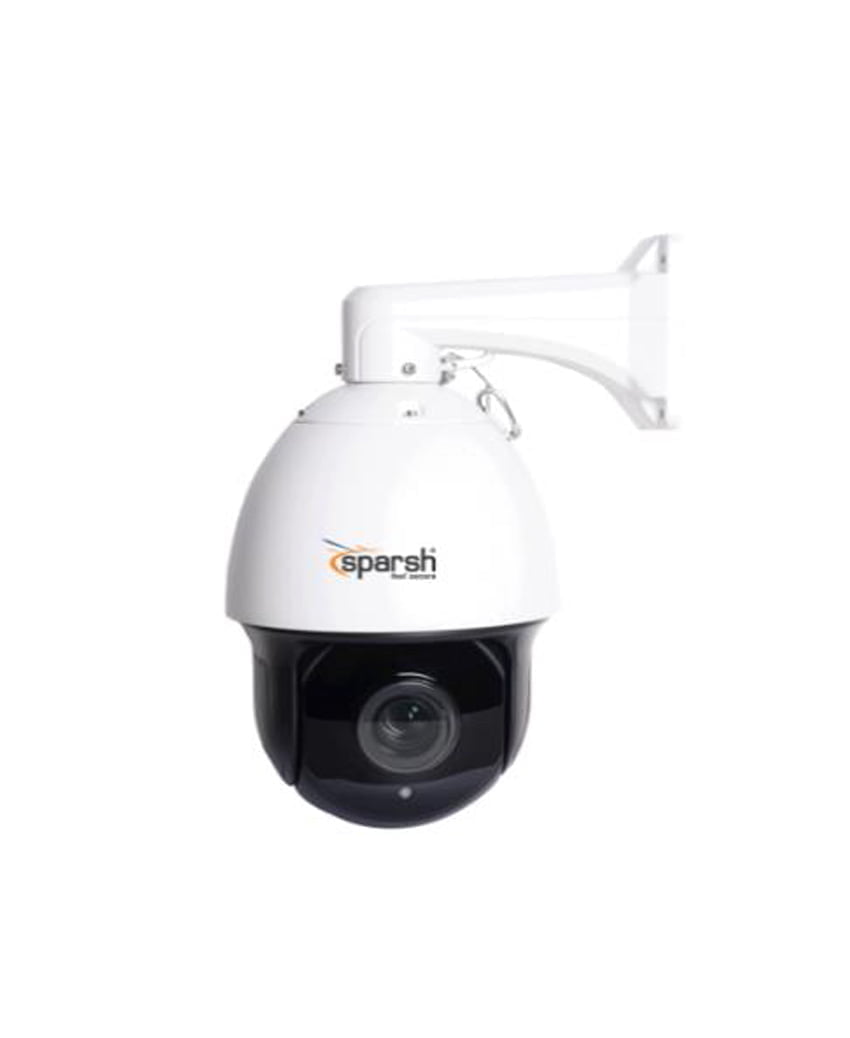

CCTV – Super Starlight PTZ Camera

Name: CCTV - Super Starlight PTZ Camera
SKU: 13672
Price: 1069.67 USD
Availability: InStock

Sold by eTrade Core

Availability: In stock

$1,069.67

Category:Digital

Model	SS-ES112P-(I)
Sensor	1/2.7’’ Super Starlight PS CMOS
Effective pixel	1920(H)*1080(V)\|2MP
Horizontal resolution	1080P
Signal & system	PAL/ NTSC
Min. Illumination	Color:0.002Lux@(F1.5,AGC ON), B/W: 0.001Lux@(F1.6, AGC ON )
Optical zoom	30X, f=4.3~129mm
Synchronization	Internal Synchronization
Shutter speed	1 sec ~ 1/100000sec
White balance	Auto/Manual/ATW/Indoor/Outdoor
AGC	Auto
WDR	Up to 120dB
Auto aperture	On/Off
SNR ratio	≥60dB
3D DNR	Auto/On/Off
Back light compensation	Support
High light compensation	Support
Digital zoom	16X
Picture effect	Auto/color/B&W
Day/night	Auto
Focus mode	Auto/manual/Semi Auto
Lens initialization	Auto
Exposure	Program/Shutter/Manual
Contrast/saturation	Adjustable
Image orientation	Mirror /flip/Anti-flicker/ Defog
OSD	16×16, 24×24,32×32, 48×48, 64×64, 96×96, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions
EIS	Supported
ROI	7 Dynamic Areas for Both Main and Sub Stream
Privacy Zone/Sector Blanking	24 Zones
LENS
Auto iris	Support
Horizontal angle of view	69.5°(w)～2.7°(t)
Field angle	H: 193.3° (W) ～ 5.86° (T) V: 132° (W) ～ 4.4° (T)
Close-up distance	0.5m (W) ～ 1m (T)
Pan & tilt
Pan range	0-360°continuous rotation
Pan speed	0.01~360°/S
Tilt range	196° (-16°-180°), Auto Flip
Tilt speed	0.01~250°/S
Preset speed	0.01~400°/S
PTZ position display	Support
Number of preset points	500, Each preset programmable up to 16 characters
Scan	8
Cruise	16, up to 32 Presets per cruise
Pattern	8, each with 600s memory or 1000 orders
Preset accuracy	± 0.1° accuracy
Network
Triple stream	Support
Video compression	H.265/H.264/M-JPEG
Audio compression	G.711A/G.711U/ADPCM/AAC
Streams	Mainstream: PAL/NTSC: 25fps.30fps (1920×1080, 1280×960, 1280×720, 704×576, 704×480, 640×480) Sub Stream: PAL/NTSC: 25fps/30fps (704×576, 704×288, 640×360, 352×288) Third Stream: PAL/NTSC25/30fps (352×288) NTSC: 30fps (352×240
Security measures	Password protection, Multiuser access control
Protocols	TCP/IP, UDP, UPnP,HTTP,HTTPS,DHCP,RTSP,SMTP,NTP,DNS,DDNS,RTP,RTSP,PPPOE,SNMP,IGMP,SIP,FTP, IP Filter,ONVIF, QoS
ANR	Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support in Enterprise ANR NVR)
Video bit rate	32 Kbps~16Mbps,VBR/CBR bit rate control
Audio bit rate	8K~48Kbps
Video streaming	Unicast and Multicast streams
Superimposing	Text Overlay, Camera Title, Date and Time, Image Overlay
Discovery interface	Sparsh Utility to detect the camera automaticallyand configure network settings
System compatibility	ONVIF (Profile S), ONVIF (Profile G)
Events
Alarm triggers	Harsh Voice Alarm, Motion Detection, Mask Alarm, Port Alarm, Network Disable Alarm, IP Conflict, MAC Conflict Detection
Video analysis	Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost
Web server	Internal Web server with Embedded Linux
Infrared
IR action mode	Auto/Manual/Camera
Night vision	180m
ICR	Yes
General
Audio in/out	1ch/1ch Support Two Way Bidirectional talk back
Alarm in/out	1ch/1ch
Ethernet	1X RJ45, 10/100M Base-T self-adaptive Ethernet interface
Sd card slot	Yes (up to 256GB)
Operating conditions	-50°C～70°C, 0～95% RH
Power supply	12VDC ±10%, ≤5A, PoE+
Enclosure	Aluminum Enclosure
Protection level	IP67 Compliant, IK10 Certified, Level 2 lightning protection 6000V surge protection
Power consumption	20.6W
Weight	Around 4.8kg
Accessories	Wall-Mount Bracket, Power Adapter
Product certified	Safety: CE, FCC, IS 13252-1 (2010), EN:60950-1, IEC 60950-1:2005, BIS Registered Ingress Protection: IP66 Certified EN/IEC 60529 Vandalism Protection: IK10 Certified, IEC 62262:2002 Immunity: CE, FCC
