| Camera Parameters | |
| Image sensor | 1/2.7″ progressive scan CMOS |
| Min. illumination | 0.001Lux @(F1.2,AGC ON), 0.008 Lux @(F1.4,AGC ON), 0 Lux with IR |
| Electronic Shutter | Auto (1/3s-1/100000s Adjustable) |
| Day/ Night | ICR switch, auto, colour, B/W, ext |
| Lens | I3: 3.6mm Angle of view: 83°
I5: 6mm, Angle of view: 55.4° I8: 8mm, Angle of view: 38.5° |
| Lens interface | M12 |
| IR Distance | I3: up to 30 Mtr, I5: up to 40 Mtr, I8: up to 60 Mtr |
| S/N ratio | ≥60db (AGC OFF) |
| Output | PAL/NTSC adjustable |
| WDR | OFF/ON, 150 dB |
| 3D N/R | Auto /Manual (High, Higher, Medium, Lower, Low) |
| 2D N/R | Auto /Manual (0-255) |
| Defog | Off/Low/Middle/High |
| Mirror | Off/ON |
| Corridor Mode | 2 Modes |
| Slow Shutter | Off/ON |
| Gain Control | High, Higher, Medium, Lower, Low |
| Anti-Flicker | Outdoor, 50Hz, 60Hz |
| Smart IR | Auto, Manual (Near Light 0-100, Far Light 0-100) |
| Focus Control | Manual |
| Exposure Mode | High Light/Low Light |
| White Balance | Auto/ Manual |
| Sharpness | Auto /Manual (0-255) |
| Video Profiles | 3 Profiles (Normal, Day, Night) with configurable video settings |
| Video Profile Scheduling | Normal, Full Day, Scheduled |
| Image setting | Brightness, Contrast, Saturation, Sharpness, Hue |
| Audio/Video Encoding | |
| Video compression | H.265/H.264/MJPEG |
| H.265 Encoding | Main Profile |
| H.264 Encoding | H.264 (MPEG-4 Part 10/AVC) Baseline / Main Profile / High Profile |
| Max Resolution | 2688 × 1520 |
| Frame Rate | Main Stream: 2560*1440@1-25fps; Sub Stream: 704*576@1-25fps; Third Stream:1280*720@1-25fps, Fourth Stream: 1080@MJPEG |
| 60Hz: 2560*1440@1-30fps; Sub Stream: 704*576@1-30fps; Third Stream:1280*720@1-30fps, Fourth Stream: 1080@MJPEG | |
| Video bit rate | Constant bit rate, variable bit rate (32kbps-16Mbps) |
| Audio compression | G.711A, G.711Mu(G.711μ), G.726 (ADPCM) |
| Audio bit rate | 8-64Kbps |
| Audio control | Support input/output volume control |
| Audio Noise Reduction | ON/OFF |
| Audio Gain Control | ON/OFF |
| ROI | Support 4 Zones, Multi-stage level |
| General | Can Choose Primary or Secondary stream for continuous snapshot at configurable interval from 1sec-7sec, Quality level 1-6 |
| Alarm | Can Choose Primary or Secondary stream for Alarm snapshot at configurable interval from 1sec-7sec, Quality level 1-6 |
| Event | Can Select Resolution from 4MP- VGA, Quality level 1-6 |
| Overlay | |
| Channel Title | ON/OFF |
| Date & Time | ON/OFF |
| Custom Text | 4 Fields with Left & Right Alignment configuration |
| Picture Overlay | BMP, 64K, 128×128, 24 bit |
| ROI | |
| ROI FPS Priority | High, General, Bad |
| ROI Zones | 4 Zones |
| Image Quality Level | 1-6 Levels |
| Smart analysis | |
| Audio Detection | Support |
| Motion detection | 4 Zones |
| Privacy Masking | 4 Zones |
| Face Detection | Face detection recognition |
| Line Crossing Detection | Crossing a pre-defined virtual line, Target: Human, Vehicle, Other |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
| Region Entrance | Enter a pre-defined virtual region from the outside place |
| Region Exiting | Exit from a pre-defined virtual region |
| Abandoned Object | Objects left over in the pre-defined region such as the suspicious baggage, toy, dangerous materials |
| Missing Object | Objects removed from the pre-defined region, such expensive article in a museum. |
| Density detection | Detection crowd |
| Object Counting | Object Counting (Entrance and Exit object number is counted and showed on screen in real time) |
| Loitering Detection | Detect in case of loitering in monitored areas |
| Retrograde detection | Wrong Direction Movement |
| Crossing A Fence | Double Line Detection, Detect some cross the fence |
| Video Diagnosis | Scene change detection, Color Cast Detection, Defocus detection |
| Tempering Alarm | Detect camera is moved, partially obscured, severely defocused, covered or sprayed |
| Pre-Post Alarm | 0-5 Sec Pre & 1-120 Min Post |
| Event linkage | Snapshot, SD card video, FTP upload, Email, alarm output linkage |
| Network | |
| Network Storage | NAS (Support FTP), FTP |
| Alarm Trigger | Motion detection, tampering alarm, VQD alerts, network disconnect, IP address conflict, storage exception |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, RTMP, Bonjour |
| Webcasting | On/OFF, Distributed Audio Video Stream over the Internet to many simultaneous listeners/viewers on YouTube or Any RTMP Server |
| Streaming | Unicast and Multicast |
| General Function | User Authentication, Watermark, IP address filtering |
| System Compatibility | ONVIF (Profile S),ONVIF(Profile G), ISAPI, CGI, PSIA |
| Max User Access | 20 |
| Interfaces | |
| Ethernet | 1 RJ45 10M/100M Ethernet port |
| Analog video output | 1CH 1.0Vp-p complex video output (Optional) |
| Audio | 1 Channel Audio IN/ 1 Channel Audio Out or Built In MIC/ 1 Channel Audio Output,
Support two-way audio (Optional) |
| Alarm | 1 Alarm input; 1 Alarm output (Optional) |
| Reset | Support (Optional) |
| RS485 | Support (Optional) |
| SD card | Support Max 256G, Micro SD (SDHC /SDXC) card local-storage |
| GENERAL | |
| Operating Conditions | -40 °C ~ 70 °C Humidity 95% or less (non-condensing) |
| Storage Conditions | -50 °C ~ 70 °C Humidity 95% or less (non-condensing) |
| Ingress protection | IP67 Complaint, IP66 Certified: EN/IEC 60529 |
| Vandalism protection | IK10 Compliant |
| Power Supply | DC 12V ± 10%, PoE (802.3af, class 3) |
| Power Consumption | Max 12W |
| Dimension & Weight | 265mm x185mm x140mm ,900 g |
| Product Certification | Safety: CE, FCC, IS/EN:60950-1, IEC 13252 (Part 1): 2010, BIS Registered, IEC 60950-1-2005
Immunity: CE, FCC |
Ordering Information
| Sr. No | Model | Horizontal Angle of View | IR Range | PoE | Optional Features |
| 1 | SC-IS41BP-I3(W) | 3.6mm: 83°
Optional Lens: 2.8 mm: 108° 4 mm: 86.4° 12 mm: 28° |
20-30 Mtr. | Yes | No |
| 2 | SC-IS41BP-I5(W) | 6mm: 55.4°
Optional Lens: 8mm: 41° 12 mm: 28° |
30-40 Mtr. | Yes | No |
| 3 | SC-IS41BP-I8(W) | 8mm: 41°
Optional Lens: 12 mm: 28° |
50-60 Mtr | Yes | No |
| 4 | SC-IS41BP-I5(W) with Alarm and Audio | 6mm: 55.4°
Optional Lens: 8mm: 41° 12 mm: 28° |
30-40 Mtr. | Yes | Alarm: 1CH IN/1CH OUT
Audio: 1CH IN/1CH OUT |
| 5 | SC-IS41BP-I8(W) with Alarm and Audio | 8mm: 41°
Optional Lens: 12 mm: 28° |
50-60 Mtr | Yes | Alarm: 1CH IN/1CH OUT
Audio: 1CH IN/1CH OUT |

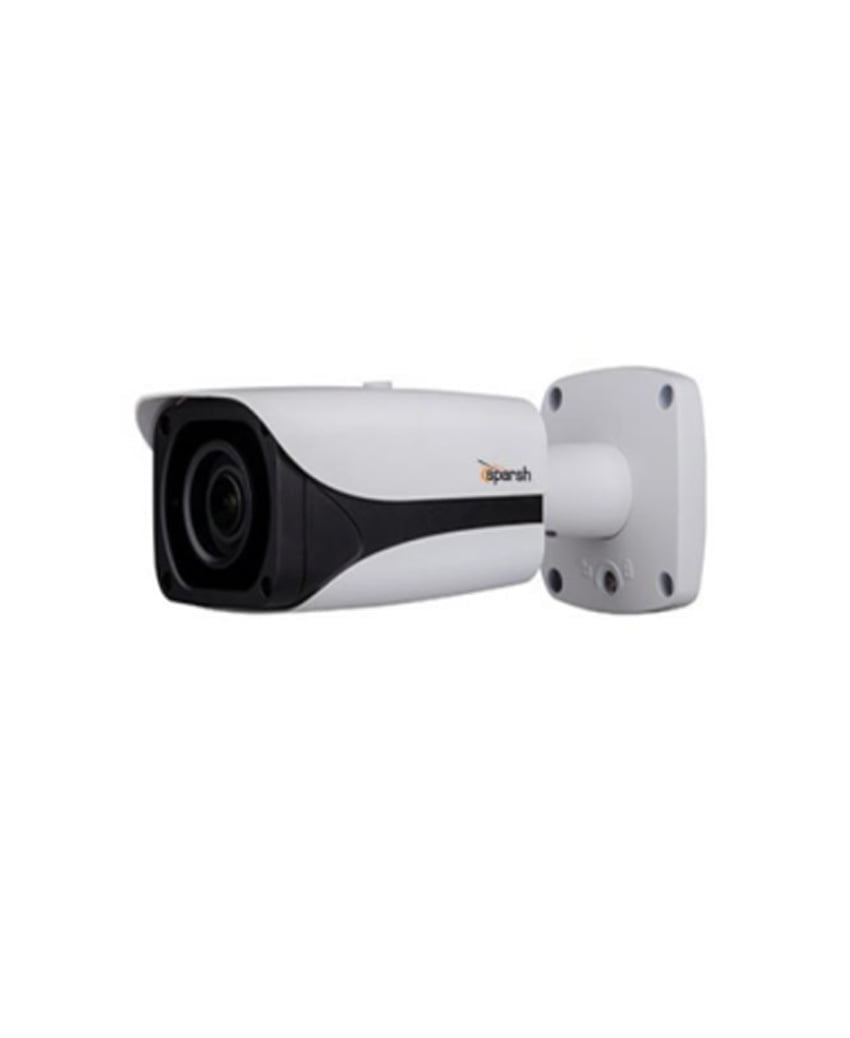

/strongstrongKey%20Features/strong•%201/2.7”%20MP%20Progressive%20scan%20CMOS•%20Support%20low%20bit%20rate,%20low%20delay%20and%20ROI%20enhance%20coding•%20Quad%20Stream%20Supported•%20H.265%20high%20effective%20compression,%20save%20bandwidth%20and%20Storage%20space•%20Multiple%20compression%20techniques%20H.265/H.264/MJPEG•%20Support%20RTMP•%20Support%203D%20digital%20N/R,%20HLC,%20BLC•%20Support%20bi-directional%20talk•%20IP67%20Compliant•%20IK10%20Complaint•%20Built-in%20Mic(Optional)&media=https://www.etradecore.com/wp-content/uploads/2020/10/CCTV_06.jpg){kind=link}
